Gas hazards can appear unexpectedly in workplaces, industrial facilities, confined spaces, and other environments where combustible or toxic gases may exist. Using a reliable gas detector helps identify dangerous conditions early and allows users to take preventive action before a serious accident occurs.

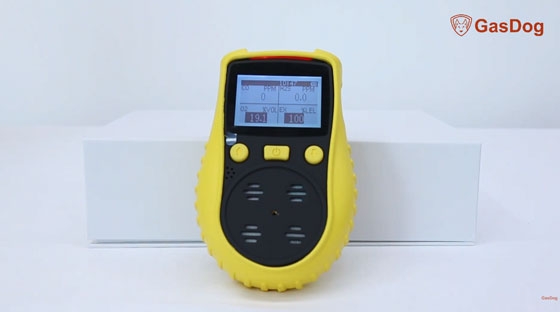

A 4-in-1 gas detector is designed to monitor multiple gases simultaneously and provide real-time alerts when gas concentrations reach dangerous levels. This article introduces the GasDog 4-in-1 handheld gas detector and demonstrates how to use its gas detection and alarm functions.
How to Start the 4-in-1 Gas Detector?

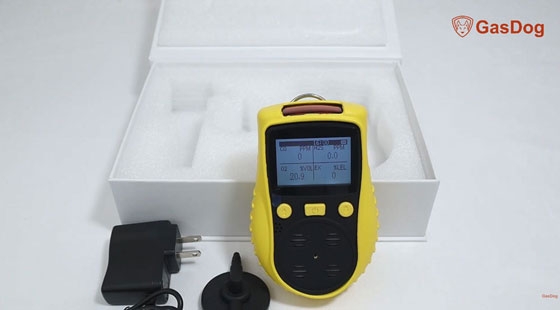

Press and hold the power button to turn on the device. During startup, the gas detector will:
- Vibrate briefly
- Activate the buzzer
- Turn on the red LED alarm light
- Display sensor information and detection ranges
Before normal operation, the detector requires approximately 60 seconds of warm-up time. After warming up, the device automatically performs a self-check to confirm that the alarm indicators are functioning properly. Once the self-check is complete, the detector enters standard monitoring mode.
What Gases Can a 4-in-1 Gas Detector Detect?
This handheld gas detector can monitor four different gases at the same time:
- Carbon Monoxide (CO)
- Hydrogen Sulfide (H2S)
- Oxygen (O2)
- Combustible gases (LEL)

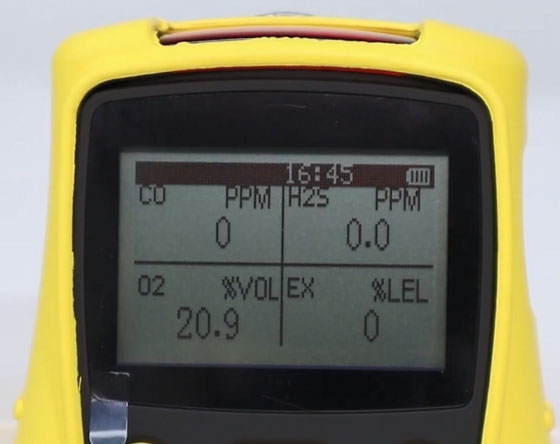

The LCD screen displays real-time gas concentration readings for all four gases simultaneously.
In normal fresh air conditions, the typical readings are:
- Oxygen: around 20.9%
- Carbon Monoxide: 0 ppm
- Hydrogen Sulfide: 0 ppm
- Combustible gas: 0% LEL
The portable gas detector uses different measurement units depending on the gas type:
- CO and H2S: ppm (parts per million)
- Oxygen: % volume
- Combustible gases: % LEL (Lower Explosive Limit)
The display also shows additional information, including battery status and time.
What Functions Does It Have?
The 4-in-1 portable gas detector provides several convenient functions to improve the user experience.
- Quick Information Check: During detection mode, users can press the center button to quickly view battery information and time settings.
- Gas Unit Switching: The measurement units for CO and H2S can be switched between ppm and μmol/mol. This function allows users to view gas concentration values according to different application requirements.
- Zero Calibration: If the detector has been exposed to gas and needs to return to normal readings, users can perform zero calibration. Press and hold the up and down buttons simultaneously for more than 3 seconds. The sensors will automatically return to zero.
Note: Zero calibration should only be performed in clean and fresh air conditions to ensure accurate results.
How Does a 4-in-1 Gas Detector Respond to Gas?
To test the detection performance, a combustible gas source such as butane can be used. When exposed to butane gas, the portable gas detector quickly detects the increasing gas concentration.
When gas is detected, the alarm immediately triggers multiple alerts, including a flashing red LED, audible alarm, vibration warning, and flashing gas concentration readings on the LCD display.
As the gas concentration increases, the alarm frequency also increases, providing a clear warning to users. After removing the gas source, the combustible gas gradually disperses. The detector continues monitoring until the gas concentration returns to a safe level. This fast response allows users to identify potential gas hazards quickly and take appropriate safety measures.
How Do You Charge the Gas Detector?
The multi gas detector can be charged through the USB port located on the side of the device. To charge the detector, simply open the protective rubber cover, connect the USB charging cable, and plug it into a power supply. A full charge typically takes around 4–6 hours. When the battery level is low, the gas detector will alert users with beeping sounds and a flashing red LED light, helping prevent unexpected shutdowns during operation.
How to Turn Off the Gas Detector?
After completing gas detection, press the power button to shut down the device. The screen will display “POWER OFF”, and the detector will produce a long beep to indicate that it is safely turning off.
Watch the complete video: How to Test 4-in-1 Portable Diffusion Gas Detector
Conclusion
The multi gas detector helps users continuously monitor combustible and toxic gases in industrial environments, confined spaces, and other hazardous areas, with features including multi-gas monitoring, real-time concentration display, audible, visual, and vibration alarms, a portable design, easy operation, and USB charging. By detecting gas risks early, users can take action before dangerous conditions develop.
