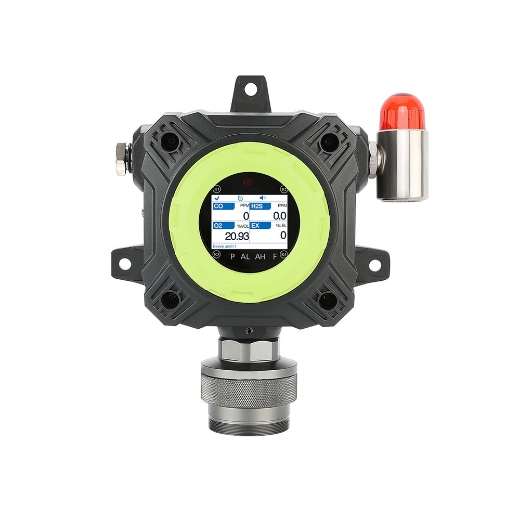

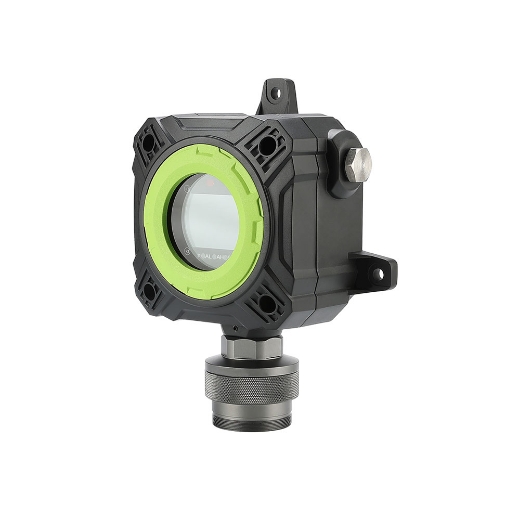

Industrial Fixed Sulfur Dioxide (SO2) Gas Detector

$1,005.29

| 0 review(s) | Add your review

Industrial fixed SO2 gas detector for sale. It comes with sound & light alarm, optional measuring range 0 to 20/50/100/500/1000ppm. This SO2 monitor supports remote control for monitoring Sulfur Dioxide concentration 24 hours online in the confined space or pipeline.

Free shipping

Delivery date: 6-12 days

SKU: GD700-SO2

Measuring Range *
Signal Output *
Relay Output *
Power Adapter *
Calibration Kit *

increase decrease

DESCRIPTION
SPECIFICATIONS
DOCUMENTS

Gas Monitor for SO₂ Detecting

GasDog Sulfur Dioxide (SO2) gas detector is fixed design to monitor the SO2 gas leak for 24 hours in industry sites or confined spaces.

Basic Parameters:

Model: GD700-SO2
Detection Principle: Electrochemistry
Gas: Sulfur Dioxide (SO₂)
Range: 0 to 20ppm ~ 0 to 1000ppm
Resolution: 0.01ppm, 0.1ppm
Accuracy: ≤±3% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months

Sulfur Dioxide Detector

Features

2.4 inch Color Screen

2.4 inch Industrial Grade High Definition Color Screen

Industrial fixed gas detector sound and light alarm

Sound & Light Alarm

Sound and Light Alarm When Reaching the Alarm Point

with Internal Suction Pump

Pump Suction Gas Detection in Complex Gas Environments

Die-cast Aluminum Material

Sturdy and Durable, Anti-Rust and Anti-Corrosion

Why Choose

Our Gas Detector?

Industrial fixed gas detector with infrared remote control

Fixed Single Gas Detector

- Industrial Sulfur Dioxide Leak Detector

✔️ With an internal suction pump, accurate in detection, sensitive and fast response.
✔️ Data is guaranteed to be reliable in strong magnetic areas such as tunnels, mines and confined spaces.
✔️ Explosion-proof design, two-stage alarm with sound and light, and the alarm point is settable.
✔️ GasDog fixed gas detector can monitor gas leak in real time online 24 hours.
✔️ Automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
✔️ The industrial gas detector comes with a standard infrared controller for remote control and modification of settings.
✔️ A pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

More Info.

Applications

Chemical Medicine

Metallurgy

Mining

Ship Transport

Gas Detection Q&A - For Your Safety Environments

Built-in advanced gas detector sensor and sound & light alarm to ensure precise and safe gas detection in hazardous applications.

Q: What is the normal concentration of SO2 in the air?

A: The normal concentration of Sulfur Dioxide (SO2) in the air varies depending on location and environmental factors. In unpolluted, clean air, SO2 concentrations typically range from 0.1 to 1.5 parts per billion (ppb) or even lower. However, in areas with industrial activity, urban pollution, or proximity to sources like volcanoes, SO2 levels can be significantly higher, ranging from a few ppb to several parts per million (ppm).

To monitor Sulfur Dioxide levels accurately and ensure safety, it's essential to use a reliable gas detector. Electrochemical sensors are commonly used for this purpose due to their sensitivity and selectivity. These sensors operate by measuring the electrical current generated during the oxidation of Sulfur Dioxide at an electrode.

When selecting a gas detector, consider your specific application, monitoring requirements, and the expected gas concentration range in your area to choose the most suitable device. Regular maintenance and calibration are essential to ensure accurate and reliable measurements.

Model	GD700-SO2
Detection Principle	Electrochemistry
Gas	Sulfur Dioxide (SO2)
Range (Optional)	0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm
Resolution	0.001ppm(0-1/5ppm), 0.01ppm(0-10/20/50ppm), 0.1ppm(0-100ppm), 1ppm(0-500/1000ppm)
Accuracy	≤±3% F.S.
Response Time	≤30s
Pump Flow Rate	0.35~0.5 L/min
Communication and Data Download	With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency	2.4G high frequency
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485
Signal Output (Optional)	Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	2.4 inch color display, resolution 320*240
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45*2mm
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-10℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	28620296mm (H x W x D)
Warranty	12 months
Weight	3.4kg (3.8kg with alarm light)
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
