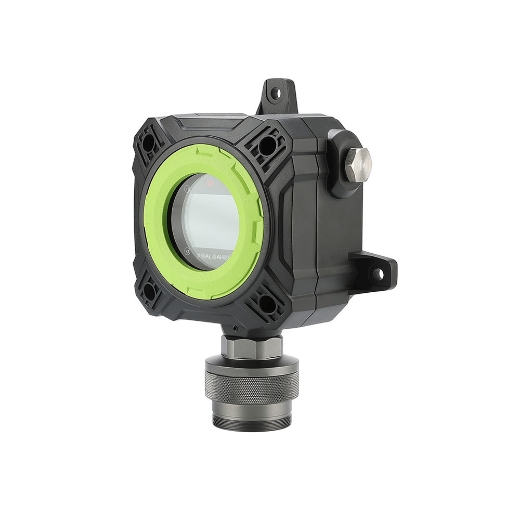

Industrial Fixed Formaldehyde (CH2O) Gas Detector

$1,036.99

| 0 review(s) | Add your review

Low price industrial fixed Formaldehyde gas detector is a wall mounted gas monitor installed in pipelines and confined spaces, with measuring range from 0 to 10/20/50/100/500/1000ppm. GasDog detector with remote control and sound & light alarm can 24h continuously monitor CH2O gas concentration.

Free shipping

Delivery date: 6-12 days

SKU: GD700-CH2O

Measuring Range *
Signal Output *
Relay Output *
Power Adapter *
Calibration Kit *

increase decrease

DESCRIPTION
SPECIFICATIONS
DOCUMENTS

Gas Monitor for CH₂O Detecting

Industrial fixed CH₂O gas detector features an advanced gas sensor and remote control for detecting and monitoring Formaldehyde gas concentration in the home, industrial fields, pipeline and other confined places.

Basic Parameters:

Model: GD700-CH2O
Detection Principle: Electrochemistry
Gas: Formaldehyde (CH₂O)
Range: 0 to 10ppm ~ 0 to 1000ppm
Resolution: 0.01ppm, 0.1ppm, or 1ppm
Accuracy: ≤±3% F.S.
Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
Certification: CE, ATEX
Warranty: 12 months

Formaldehyde Detector

Features

2.4 inch Color Screen

2.4 inch Industrial Grade High Definition Color Screen

Industrial fixed gas detector sound and light alarm

Sound & Light Alarm

Sound and Light Alarm When Reaching the Alarm Point

with Internal Suction Pump

Pump Suction Gas Detection in Complex Gas Environments

Die-cast Aluminum Material

Sturdy and Durable, Anti-Rust and Anti-Corrosion

Why Choose

Our Gas Detector?

Industrial fixed gas detector with infrared remote control

Fixed Single Gas Detector

- Industrial Formaldehyde Leak Detector

✔️ With an internal suction pump, accurate in detection, sensitive and fast response.
✔️ Data is guaranteed to be reliable in strong magnetic areas such as tunnels, mines and confined spaces.
✔️ Explosion-proof design, two-stage alarm with sound and light, and the alarm point is settable.
✔️ GasDog fixed gas detector can monitor gas leak in real time online 24 hours.
✔️ Automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
✔️ The industrial gas detector comes with a standard infrared controller for remote control and modification of settings.
✔️ A pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

More Info.

Applications

Chemical Medicine

Metallurgy

Mining

Ship Transport

Gas Detection Q&A - For Your Safety Environments

Built-in advanced gas detector sensor and sound & light alarm to ensure precise and safe gas detection in hazardous applications.

Q: What are the dangers of Formaldehyde gas?

A: Formaldehyde gas is a colorless, strong-smelling chemical compound commonly used in various industrial and household products. Exposure to formaldehyde can pose several health risks. Short-term exposure can lead to eye, nose, and throat irritation, coughing, and respiratory problems. Prolonged or repeated exposure may result in more severe health issues, including increased risk of respiratory diseases, allergic reactions, and potential carcinogenic effects.

The dangers of CH2O gas make it essential to monitor its presence in indoor environments. Using portable and fixed gas detectors can help mitigate these risks. These detectors utilize sensors to measure Formaldehyde levels and provide timely alerts when concentrations exceed safe limits. They are crucial in ensuring workplace safety, especially in industries using Formaldehyde-containing materials like wood products and textiles.

Model	GD700-CH2O
Detection Principle	Electrochemistry
Gas	Formaldehyde (CH2O)
Range (Optional)	0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm
Resolution	0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm), or 1ppm (0-500/1000ppm)
Accuracy	≤±3% F.S.
Response Time	≤30s
Pump Flow Rate	0.35~0.5 L/min
Communication and Data Download	With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency	2.4G high frequency
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485
Signal Output (Optional)	Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	2.4 inch color display, resolution 320*240
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45*2mm
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-10℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	28620296mm (H x W x D)
Warranty	12 months
Weight	3.4kg (3.8kg with alarm light)
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
