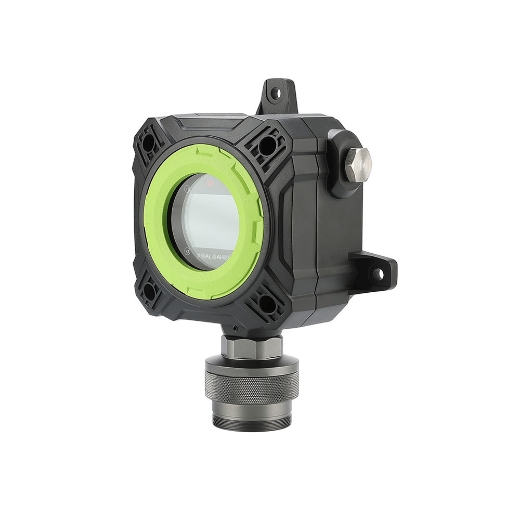

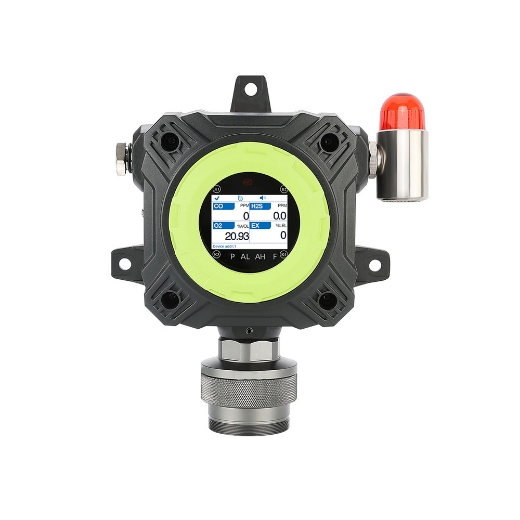

Industrial Fixed Nitrogen Oxides (NOX) Gas Detector
Industrial Fixed Nitrogen Oxides (NOX) Gas Detector Industrial Fixed Nitrogen Oxides (NOX) Gas Detector Industrial Fixed Nitrogen Oxides (NOX) Gas Detector Industrial Fixed Nitrogen Oxides (NOX) Gas Detector Industrial Fixed Nitrogen Oxides (NOX) Gas Detector Industrial Fixed Nitrogen Oxides (NOX) Gas Detector

Industrial Fixed Nitrogen Oxides (NOX) Gas Detector

$1,003.89
| 0 review(s) | Add your review
GasDog fixed NOX gas detector comes with an advanced sensor and sound & light alarm, measuring ranges of 0-1/5/10/20/50/100/250/500/1000ppm available. This safety monitoring equipment is designed to continuously monitor and detect Nitrogen Oxides (NO and NO2) in industrial environments.
Free shipping
Delivery date: 6-12 days
SKU: GD700-NOX
*
*
*
*
increase decrease
  • DESCRIPTION
  • SPECIFICATIONS
  • DOCUMENTS

Gas Monitor for NOX Detecting

Industrial fixed NOX gas detector features sound & light alarms to alert workers of hazardous gas levels. This enables them to promptly respond and implement measures to reduce risks, ensuring the safety of personnel and the surrounding environment.

Basic Parameters:
  • Model: GD700-NOX
  • Detection Principle: Electrochemistry
  • Gas: Nitrogen Oxides (NOX)
  • Range: 0 to 1ppm ~ 0 to 1000ppm
  • Resolution: 0.001ppm, 0.01ppm, 0.1ppm, or 1ppm
  • Accuracy: ≤±3% F.S.
  • Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
  • Certification: CE, ATEX
  • Warranty: 12 months

01

Nitrogen Oxides Gas Detector

Features

2.4 inch color screen for industrial fixed gas detector

2.4 inch Color Screen

2.4 inch Industrial Grade High Definition Color Screen

Industrial fixed gas detector sound and light alarm

Sound & Light Alarm

Sound and Light Alarm When Reaching the Alarm Point

Pump suction fixed gas detector

with Internal Suction Pump

Pump Suction Gas Detection in Complex Gas Environments

Die-cast aluminum material

Die-cast Aluminum Material

Sturdy and Durable, Anti-Rust and Anti-Corrosion



02

Why Choose

Our Gas Detector?

Industrial fixed gas detector with infrared remote control

Fixed Single Gas Detector

- Industrial NOX Gas Monitor


  • ✔️ With an internal suction pump, accurate in detection, sensitive and fast response.
  • ✔️ Data is guaranteed to be reliable in strong magnetic areas such as tunnels, mines and confined spaces.
  • ✔️ Explosion-proof design, two-stage alarm with sound and light, and the alarm point is settable.
  • ✔️ GasDog fixed gas detector can monitor gas leak in real time online 24 hours.
  • ✔️ Automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
  • ✔️ The industrial gas detector comes with a standard infrared controller for remote control and modification of settings.
  • ✔️ A pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

03

More Info.

Applications

Industrial fixed single gas detector for chemical medicine

Chemical Medicine

Industrial fixed gas detector for metallurgy

Metallurgy

Industrial fixed gas detector for mining

Mining

Industrial fixed gas detector for ship transport

Ship Transport

Gas Detection Q&A - For Your Safety Environments

Built-in advanced gas detector sensor and sound & light alarm to ensure precise and safe gas detection in hazardous applications.

Q: What are the hazards of Nitrogen Oxides (NOX) Gas?

A: Nitrogen Oxides (NOX) gas refers to compounds composed of Nitrogen and Oxygen, including Nitric Oxide (NO) and Nitrogen Dioxide (NO2). These gases mainly come from emissions from fuel combustion during industrial processes, transportation, and combustion.

NOX gases are harmful to both humans and the environment. Some of the main hazards include:

  • Effects on human health: NOX gases can cause respiratory problems such as airway inflammation, asthma, bronchospasm, etc. NO2 is particularly dangerous because it damages lung tissue, causing breathing difficulties and other respiratory problems.
  • Effects on the environment: NOX is one of the main components of acid rain, which damages water bodies, soil, and vegetation. In addition, they are involved in the formation of ozone and atmospheric particulate matter, which are also threats to the environment and health.

Therefore, it is very important to use gas detectors to monitor the concentration of NOX gases. These detection equipments can help us detect and control the emission of NOX gases early and protect human health and the environment. Regular monitoring of these gas concentrations also helps to evaluate and improve emission control measures in the industrial and transportation sectors.

Model GD700-NOX
Detection Principle Electrochemistry
Sampling Method Pump suction
Gas Nitrogen Oxides (NOX)
Range (Optional) 0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 250ppm, 0 to 500ppm, 0 to 1000ppm
Resolution 0.001ppm(0-1/5ppm), 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100/250ppm), or 1ppm (0-500/1000ppm)
Calibration Kit Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy ≤±3% F.S.
Response Time ≤30s
Pump Flow Rate 0.35~0.5 L/min
Communication and Data Download With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency 2.4G high frequency
Zero Shift ≤±1% (F.S./year)
Signal Output (Optional) 4-20mA and RS485
Relay output: one group of relay output (1NO, 24V 100mA) for one alarm (default)
Alarms Sound, light
Display 2.4 inch color display, resolution 320*240
Installation Wall-mounted, piping type, flow-type (according to the detected environment)
Connection G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Operating Time 24h
Explosion-proof Grade Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade IP66
Certification CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage 12-36V DC
Case Material Die-casting aluminum housing
Operating Temperature -10℃~50℃
Operating Humidity 0~95%RH (non-condensing)
Dimension 286*202*96mm (H x W x D)
Warranty 12 months
Weight 3.4kg (3.8kg with alarm light)
Accessories Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)


Note:
To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

GasDog Gas Detectors Catalogs

GasDog Gas Detector Catalog GD200 Portable Gas Detectors GD300 Online Fixed Gas Detectors GD400 Explosion Proof Portable Gas Detectors GD500 Handheld Multi Gas Detectors GD600 Multi Gas Analyzer GD700 Industrial Fixed Gas Detectors

GasDog Gas Detectors User Manuals

GD200 Portable Gas Detector User Manual GD300 Fixed Gas Detector User Manual GD400 Explosion Proof Gas Detector User Manual GD600 Multi Gas Analyzer User Manual GD700 Industrial Fixed Gas Detector User Manual

GasDog Gas Detector Controller User Manuals

GD900-4C Gas Detector Control Panel User Manual GD900-32C Gas Detector Control Panel User Manual

GasDog Communication Protocol

Gas Detector Communication Protocol V1.0

Portable Gas Detector Calibration Accessories - Gas Pressure Regulator

GasDog Single Stage Pressure Regulator User Manual

Gas Detector Data Downloading Operation Instruction

Gas Detector Data Downloading Operation Instruction

Gas Detector Software

GasDog Portable Gas Detector DataExport Software
