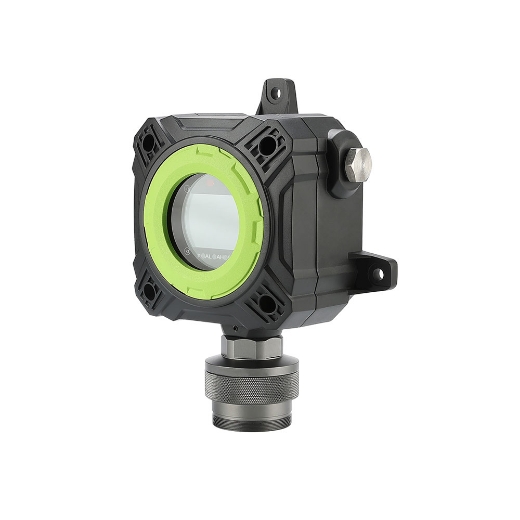

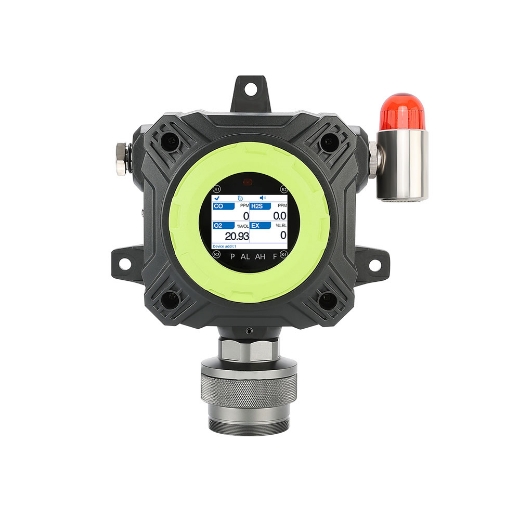

Industrial Fixed Methane (CH4) Gas Detector
Industrial Fixed Methane (CH4) Gas Detector Industrial Fixed Methane (CH4) Gas Detector Industrial Fixed Methane (CH4) Gas Detector Industrial Fixed Methane (CH4) Gas Detector Industrial Fixed Methane (CH4) Gas Detector Industrial Fixed Methane (CH4) Gas Detector

Industrial Fixed Methane (CH4) Gas Detector

$2,052.89
| 1 review(s) | Add your review
Fixed CH4 gas detector for sale online. This industrial gas monitor with a measuring range of 0-100% LEL, 0-50%, 0-100% VOL, features a sensitive gas sensor and remote control for detecting and monitoring Methane gas concentration.
Free shipping
Delivery date: 6-12 days
SKU: GD700-CH4
*
*
*
*
increase decrease
  • DESCRIPTION
  • SPECIFICATIONS
  • DOCUMENTS

Gas Monitor for CH4 Detecting

GasDog fixed Methane (CH4) gas detector comes with a real-time display and audible & visual alarm, which can be installed at home and other confined places for detecting and monitoring natural gas leaks.

Basic Parameters:
  • Model: GD700-CH4
  • Detection Principle: Infrared
  • Gas: Methane (CH4)
  • Range: 0-100% LEL, 0-50% VOL, 0-100% VOL
  • Resolution: 1% LEL, 0.01% VOL, or 0.1% VOL
  • Accuracy: ≤±3% F.S.
  • Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
  • Certification: CE, ATEX
  • Warranty: 12 months

01

Methane Detector

Features

2.4 inch color screen for industrial fixed gas detector

2.4 inch Color Screen

2.4 inch Industrial Grade High Definition Color Screen

Industrial fixed gas detector sound and light alarm

Sound & Light Alarm

Sound and Light Alarm When Reaching the Alarm Point

Pump suction fixed gas detector

with Internal Suction Pump

Pump Suction Gas Detection in Complex Gas Environments

Die-cast aluminum material

Die-cast Aluminum Material

Sturdy and Durable, Anti-Rust and Anti-Corrosion



02

Why Choose

Our Gas Detector?

Industrial fixed gas detector with infrared remote control

Fixed Single Gas Detector

- Industrial Methane Leak Detector


  • ✔️ With an internal suction pump, accurate in detection, sensitive and fast response.
  • ✔️ Data is guaranteed to be reliable in strong magnetic areas such as tunnels, mines and confined spaces.
  • ✔️ Explosion-proof design, two-stage alarm with sound and light, and the alarm point is settable.
  • ✔️ GasDog fixed gas detector can monitor gas leak in real time online 24 hours.
  • ✔️ Automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
  • ✔️ The industrial gas detector comes with a standard infrared controller for remote control and modification of settings.
  • ✔️ A pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

03

More Info.

Applications

Industrial fixed single gas detector for chemical medicine

Chemical Medicine

Industrial fixed gas detector for metallurgy

Metallurgy

Industrial fixed gas detector for mining

Mining

Industrial fixed gas detector for ship transport

Ship Transport

Gas Detection Q&A - For Your Safety Environments

Built-in advanced gas detector sensor and sound & light alarm to ensure precise and safe gas detection in hazardous applications.

Q: What is the concentration detection range of a methane detector?

A: The concentration detection range of a methane detector typically spans from the lower explosive limit (LEL) to the upper explosive limit (UEL) of methane in the surrounding environment. This range is commonly expressed as a percentage of the gas's volume in the air. For methane, the LEL is around 5% and the UEL is approximately 15%. Consequently, a CH4 monitor is designed to reliably detect natural gas concentrations from 0% to 100% of the lower explosive limit, which translates to approximately 0% to 5% methane in the air. Detectors usually provide accurate readings within this range, allowing users to monitor methane levels for safety or regulatory compliance. However, specialized gas detectors might offer extended ranges for different applications, such as environmental monitoring or industrial processes, but the core focus remains on detecting methane concentrations within the explosive limits to prevent hazardous situations.

Model GD700-CH4
Detection Principle Infrared
Gas Methane (CH4)
Range (Optional) 0-100% LEL, 0-50% VOL, 0-100% VOL
Resolution 1% LEL (0-100%LEL), 0.01% VOL (0-50%VOL), 0.1% VOL (0-100%VOL)
Calibration Kit Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy ≤±3% F.S.
Response Time ≤30s
Pump Flow Rate 0.35~0.5 L/min
Communication and Data Download With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency 2.4G high frequency
Zero Shift ≤±1% (F.S./year)
Signal Output (Optional) 4-20mA and RS485
Relay output: one group of relay output (1NO, 24V 100mA) for one alarm (default)
Alarms Sound, light
Display 2.4 inch color display, resolution 320*240
Installation Wall-mounted, piping type, flow-type (according to the detected environment)
Connection G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Operating Time 24h
Explosion-proof Grade Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade IP66
Certification CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage 12-36V DC
Case Material Die-casting aluminum housing
Operating Temperature -10℃~50℃
Operating Humidity 0~95%RH (non-condensing)
Dimension 286*202*96mm (H x W x D)
Warranty 12 months
Weight 3.4kg (3.8kg with alarm light)
Accessories Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)


Note:
To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
