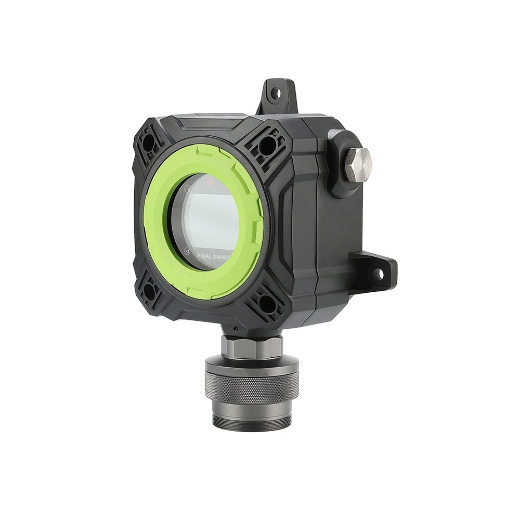

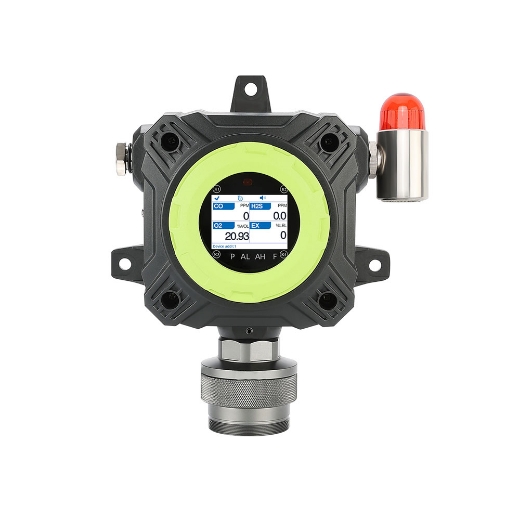

Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector
Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector

Industrial Fixed Nitrogen Dioxide (NO2) Gas Detector

$1,005.29
| 0 review(s) | Add your review
Industrial fixed NO2 gas detector for sale, available in measuring range of 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm. It is a pump suction detector for monitoring Nitrogen Dioxide gas concentration 24 hours online in pipeline or other confined spaces.
Free shipping
Delivery date: 6-12 days
SKU: GD700-NO2
*
*
*
*
increase decrease
  • DESCRIPTION
  • SPECIFICATIONS
  • DOCUMENTS

Gas Monitor for NO2 Detecting

GasDog industrial fixed NO2 detector comes with audible & visual alarm and remote control for monitoring Nitrogen Dioxide gas concentration in various environments.

Basic Parameters:
  • Model: GD700-NO2
  • Detection Principle: Electrochemistry
  • Gas: Nitrogen Dioxide (NO2)
  • Range: 0 to 1ppm ~ 0 to 1000ppm
  • Resolution: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
  • Accuracy: ≤±3% F.S.
  • Explosion-proof Grade: Ⅱ 2G Ex ia Ⅱ CT4 Ga
  • Certification: CE, ATEX
  • Warranty: 12 months

01

Nitrogen Dioxide Detector

Features

2.4 inch color screen for industrial fixed gas detector

2.4 inch Color Screen

2.4 inch Industrial Grade High Definition Color Screen

Industrial fixed gas detector sound and light alarm

Sound & Light Alarm

Sound and Light Alarm When Reaching the Alarm Point

Pump suction fixed gas detector

with Internal Suction Pump

Pump Suction Gas Detection in Complex Gas Environments

Die-cast aluminum material

Die-cast Aluminum Material

Sturdy and Durable, Anti-Rust and Anti-Corrosion



02

Why Choose

Our Gas Detector?

Industrial fixed gas detector with infrared remote control

Fixed Single Gas Detector

- Industrial Nitrogen Dioxide Leak Detector


  • ✔️ With an internal suction pump, accurate in detection, sensitive and fast response.
  • ✔️ Data is guaranteed to be reliable in strong magnetic areas such as tunnels, mines and confined spaces.
  • ✔️ Explosion-proof design, two-stage alarm with sound and light, and the alarm point is settable.
  • ✔️ GasDog fixed gas detector can monitor gas leak in real time online 24 hours.
  • ✔️ Automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
  • ✔️ The industrial gas detector comes with a standard infrared controller for remote control and modification of settings.
  • ✔️ A pretreatment system can be selected to cool down, dehumidify and remove dust to protect the service life of the detector.

03

More Info.

Applications

Industrial fixed single gas detector for chemical medicine

Chemical Medicine

Industrial fixed gas detector for metallurgy

Metallurgy

Industrial fixed gas detector for mining

Mining

Industrial fixed gas detector for ship transport

Ship Transport

Gas Detection Q&A - For Your Safety Environments

Built-in advanced gas detector sensor and sound & light alarm to ensure precise and safe gas detection in hazardous applications.

Q: How much NO2 is toxic?

A: The toxicity of Nitrogen Dioxide (NO2) varies depending on the concentration and duration of exposure. Short-term exposure to high concentrations of NO2 can be harmful. Inhaling NO2 at levels above 100 parts per million (ppm) for even a few minutes can lead to respiratory distress, coughing, and irritation of the throat and lungs. Prolonged exposure to lower concentrations, such as 5-10 ppm over several hours, can also cause respiratory symptoms in sensitive individuals.

Long-term exposure to Nitrogen Dioxide at levels typically found in outdoor air (usually below 0.1 ppm) can lead to chronic respiratory problems, worsen pre-existing lung conditions like asthma, and increase the risk of respiratory infections. Vulnerable populations, such as children, the elderly, and individuals with pre-existing lung diseases, are more susceptible to NO2's harmful effects. It's essential to monitor NO2 with gas detectors, especially in urban areas with high traffic and industrial activity, to minimize health risks.

Model GD700-NO2
Detection Principle Electrochemistry
Gas Nitrogen Dioxide (NO2)
Range (Optional) 0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm
Resolution 0.001ppm (0-1/5ppm),0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000ppm)
Calibration Kit Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy ≤±3% F.S.
Response Time ≤30s
Pump Flow Rate 0.35~0.5 L/min
Communication and Data Download With PC software, history data can be downloaded, stored, printed, and analyzed on a computer
Network Frequency 2.4G high frequency
Zero Shift ≤±1% (F.S./year)
Signal Output (Optional) 4-20mA and RS485
Relay output: one group of relay output (1NO, 24V 100mA) for one alarm (default)
Alarms Sound, light
Display 2.4 inch color display, resolution 320*240
Installation Wall-mounted, piping type, flow-type (according to the detected environment)
Connection G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Operating Time 24h
Explosion-proof Grade Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade IP66
Certification CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage 12-36V DC
Case Material Die-casting aluminum housing
Operating Temperature -10℃~50℃
Operating Humidity 0~95%RH (non-condensing)
Dimension 286*202*96mm (H x W x D)
Warranty 12 months
Weight 3.4kg (3.8kg with alarm light)
Accessories Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)


Note:
To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

GasDog Gas Detectors Catalogs

GasDog Gas Detector Catalog GD200 Portable Gas Detectors GD300 Online Fixed Gas Detectors GD400 Explosion Proof Portable Gas Detectors GD500 Handheld Multi Gas Detectors GD600 Multi Gas Analyzer GD700 Industrial Fixed Gas Detectors

GasDog Gas Detectors User Manuals

GD200 Portable Gas Detector User Manual GD300 Fixed Gas Detector User Manual GD400 Explosion Proof Gas Detector User Manual GD600 Multi Gas Analyzer User Manual GD700 Industrial Fixed Gas Detector User Manual

GasDog Gas Detector Controller User Manuals

GD900-4C Gas Detector Control Panel User Manual GD900-32C Gas Detector Control Panel User Manual

GasDog Communication Protocol

Gas Detector Communication Protocol V1.0

Portable Gas Detector Calibration Accessories - Gas Pressure Regulator

GasDog Single Stage Pressure Regulator User Manual

Gas Detector Data Downloading Operation Instruction

Gas Detector Data Downloading Operation Instruction

Gas Detector Software

GasDog Portable Gas Detector DataExport Software
